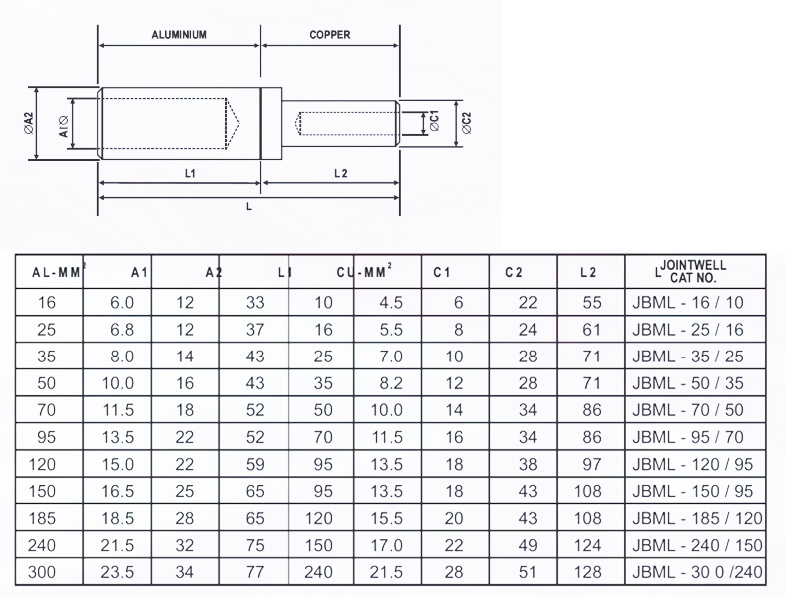

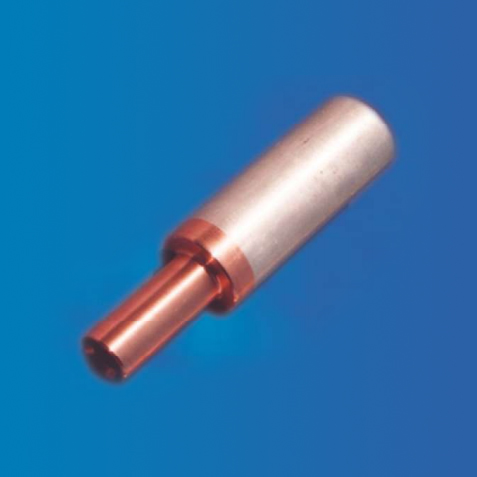

Non Tension bi Metallic Compression Joints

CONDUCTIVE MATERIAL
ALUMINIUM BARREL	99.6%
COPPER PALM	99.95%
FINAL METAL STATE	FULLY ANNEALED INCLUDING JOINT
JOINING METHOD	FRICTION WELDING, WELDING AREA MORE THAN NOMINAL CONDUCTOR AREA.
FINISH	NATURAL

CONDUCTIVITY :
ALUMINIUM 61.8% IACS (MIN)
COPPER 99.7% IACS

ALUMINIUM BARRELARE CHEMICALLY TREATED TO REDUCE CONTACT RESISTANCE AND CORROSION AND ARE FILLED ELECTRICALLY CONDCTIVE CORROSION INHABITANT WITH A JOINTING COMPOUND AND CAPPED.

NOTE :
1) COMBINATOINS OF BI-METALLIC COMPRESSION JOINTS ARE DESIGNED ON THE BASIS OF CURRENT CARRYING CAPACITY OF INDIVIDUAL CABLES.

2) IN CASE ADDITIONAL COMBINATIONS ARE REQUIRED SAME MAY WILL BE PROVIDED AGAINST SPECIFIC REQUEST.

3) SHAPE SIZE AND DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
