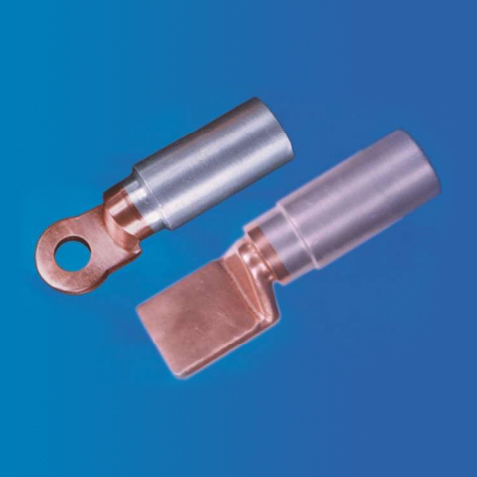

Copper-Aluminium Bi Metal Lugs

CONDUCTIVE MATERIAL
ALUMINIUM BARREL	99.6%
COPPER PALM	99.95%
FINAL METAL STATE	FULLY ANNEALED INCLUDING JOINT
JOINING METHOD	FRICTION WELDING, WELDING AREA MORE THAN NOMINAL CONDUCTOR AREA.
FINISH	NATURAL

CONDUCTIVITY :
ALUMINIUM 61.8% IACS (MIN)
COPPER 99.7% IACS

ALUMINIUM BARRELARE CHEMICALLY TREATED TO REDUCE CONTACT RESISTANCE AND CORROSION AND ARE FILLED ELECTRICALLY CONDCTIVE CORROSION INHABITANT WITH A JOINTING COMPOUND AND CAPPED.

NOTE :
1) COMBINATOINS OF BI-METALLIC COMPRESSION JOINTS ARE DESIGNED ON THE BASIS OF CURRENT CARRYING CAPACITY OF INDIVIDUAL CABLES.

2) IN CASE ADDITIONAL COMBINATIONS ARE REQUIRED SAME MAY WILL BE PROVIDED AGAINST SPECIFIC REQUEST.
