DIN Rail / Mounting Rail

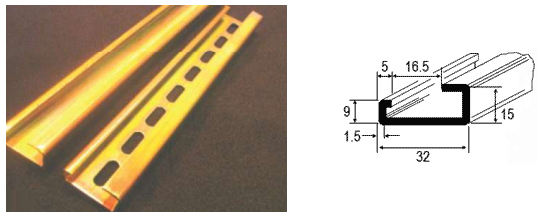

'G' Profile to BS 5825 : 1980 (EN 50035, DIN 46277-1)

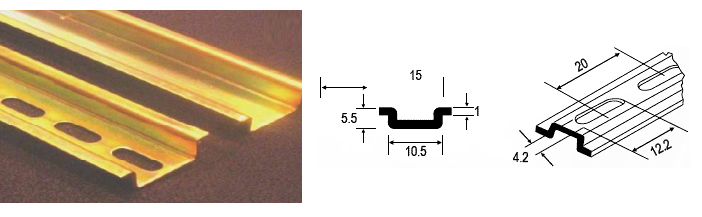

Miniature Type Top Hat Profile to BS 6273 : 1982 (EN 50045, DIN 46277-2)

DIN Rail / MCB / Mounting Rail

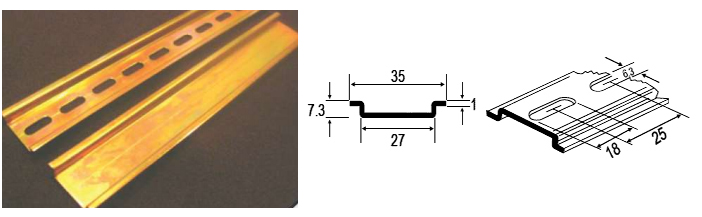

Standard Top Hat Profile to BS 5584 : 1978 (EN 50022, DIN 46277-3)

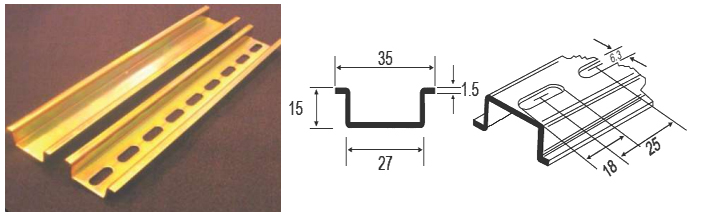

Deep Top Hat Profile to BS 5584 : 1978 (EN 50022, DIN 46277-3)

MATERIAL : COLD ROLLED STEEL
FINISHED : ZINC PLATED & PASSIVATED.
‘G’ PROFILE, STANDARD DIN / MCB RAIL & DEEP MCB RAILS ARE MANUFACTURED IN 1M, 2M & TO CUSTOMERS CUT LENGTH SIZES.
MINIATURE RAILS ARE MANUFACTURED IN 1 M LENGTH.
ALL RAILS ARE MANUFACTURED SLOTTED / UNSLOTTED AS PER
CUSTOMER’S REQUIREMENT.

COPPER ALUMINIUM BIMETAL WASHER

ALUMINIUM DIN RAIL
Size 35mm x 7.5mm
