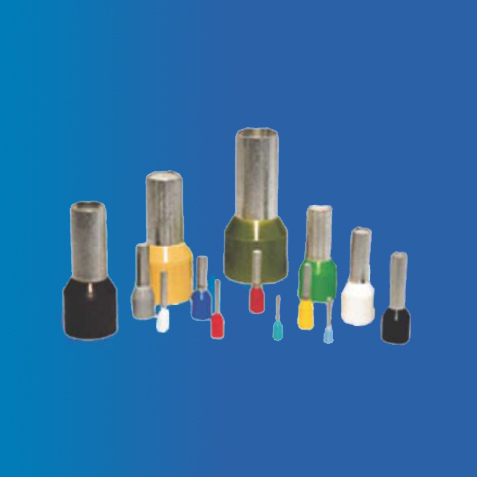

Insulated end Sealing Ferrules / Bootlace Pins

MATERIAL : ELECTROLYTIC COPPER BS 1977 / IS 191 (PART V)
FINESH : ELECTRO TINNED

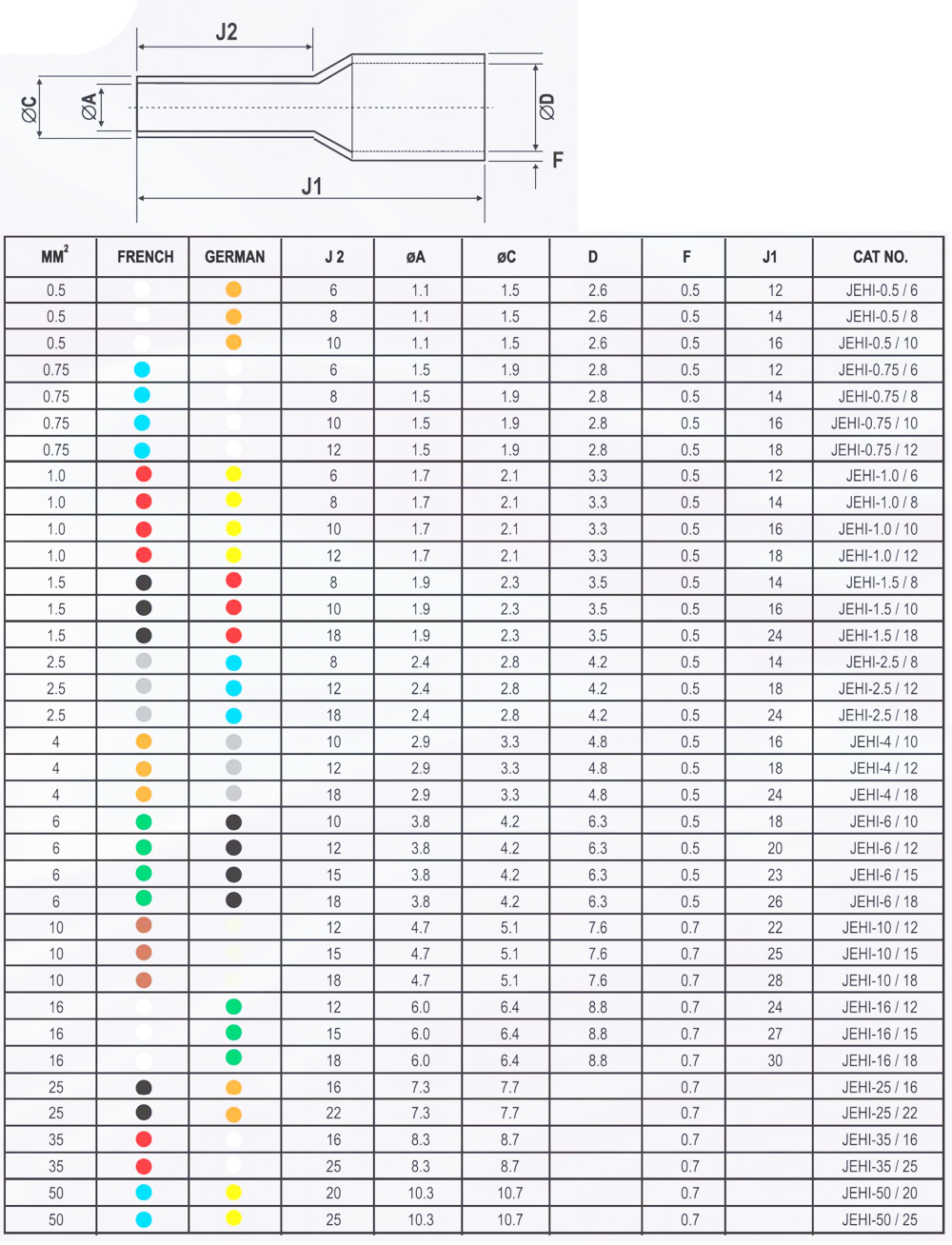

INSULATED END SEALING FERRULES / BOOTLACE PINS PROVIDE NEAT END TERMINATION OF MULTI STRANDED WIRES AND REDUCES THE RISK OF WORE STRAND SHORT CIRCUITING TO THE ADJUSANT TERMINATION. THE END SEALING FERRULES ARE MANUFACTURED FROM HIGH CONDUCTIVITY COPPER TUBES AND INSULATED WITH POLY CONDUCTORS. TABLE SHOWS FERNCH 7 GERMAN PREFERED COLOURS.

BIGGER SIZE CAN BE MANUFACTURED AGAINST SPECIFIC REQUIRMENT

THE END SEALING FERRULES / BOOTLACE PINE ARE SUITABLE TO USE IN TERMINAL BLOCKS AND CAPTIVE TERMINALS.
