:: Reverse Bi - Metallic Lugs ::

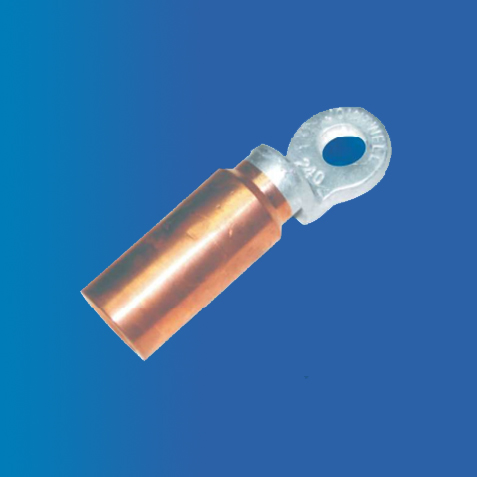

Reverse Bi - Metallic Lugs




Click For Quote

Click For Quote
  All dimensions are in mm.

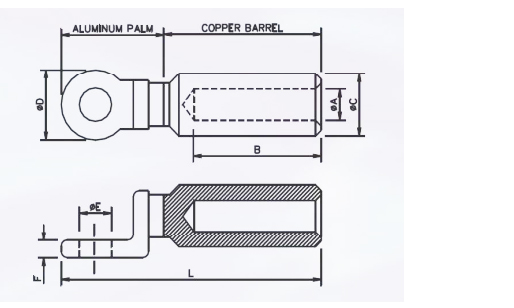

SIZE mm2 øA B øC D øE F L JOINTWELL CAT NO.
120 15.5 45 25 37 13.0 10 115 JREBM - 120
150 16.5 45 25 37 13.0 10 120 JREBM - 150
185 18 50 28 37 13.0/17.0 10 127 JREBM - 185
240 21 55 32 37 17.0 10 132 JREBM - 240
300 23.5 55 32 37 17.0 10 132 JREBM - 300

  CONDUCTIVE MATERIAL :
Aluminium Barrel : 99.6%
Copper Palm : 99.95%
Final Metal State : Fully Annealed, Including Joint.
Joining method friction welding, welding area more than nominal conductor area.
Finish natural.

CONDUCTIVITY :
Aluminium 61.8% IACS (MIN)
Copper 99.7% IACS
Aluminium barrel are chemically treated to reduce contact resistance and corrosion and are filled electrically conductive corrosion inhabitant with a jointing compound and capped.

NOTE:
1) Combinations of bi-metallic compression joints are designed on the basis of current Carrying capacity of
    individual cables.
2) In case additional combinations are required same may will be provided against specific request.
3) Shape size and dimensions are subject to change without notice.
