:: Copper Bonded Earth Rod ::





Copper Bonded Earth Rod


Click For Quote


COPPER BONDED EARTH RODS ARE BEST AND MOST ECONOMICAL EARTH RODS. THEY ARE MADE BY MOLECULARLY BONDING 99.9% ELECTROLYIC COPPER ONTO HIGH TENSILE LOW CARBON STEEL OF BS 4360 GRADE A. THE RODS ARE HIGHLY RESISTANCE TO CORRISSOION AND BECAUDE THE STEEL USED HAS VERY HIGH TENSILE STRENGTH , THE RODS CAN BE DRIVEN BY POWER HAMMERS TO GREATER DEAPTHS. THE THREADING AND THERE IS 'BUIL-IN' DRIVING TIP. THE ROLL THREADS PROVIDE EXTRA STRENGTH WHEREBY RISK OF CHIPPING WHILE DRIVING RODS IN GROUND IS ELIMINATED

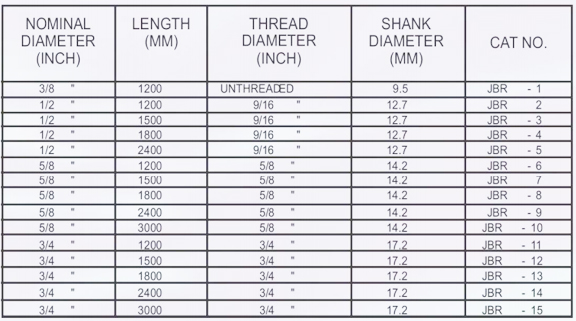

NOMINAL DIA MM CAT NO.
1/2" COUPLING JC - 1
5/8" COUPLING JC - 2
3/4" COUPLING JC - 3
1/2" DRIVING STUD JD - 1
5/8" DRIVING STUD JD - 2
3/4" DRIVING STUD JD - 3
Copper Bonded Earth Rod COUPLERS ARE MADE FROM BRASS. DRIVING HEAD IS REUSABLE AND MADE FROME HIGH TENSILE STEEL.

Solid Copper Bonded Earth Rod

:: Solid Copper Bonded Earth Rod ::

ROD DIA (mm) LENGTH (mm) Cat No. Solid copper earth rods are manufactured in both the types with external threads and internal threads. The rods are used where soil conditions are very aggressive and corrosion is very high such as soils with high salt content Copper rods gives exceptionally long life. The rods are manufactured from high conductivity hard drawn copper to BS 2874-C101
15 1200 JCR - 1
15 1500 JCR - 2
20 1200 JCR - 3
20 1500 JCR - 4
