:: Bi Metallic Lugs with centre Palm ::

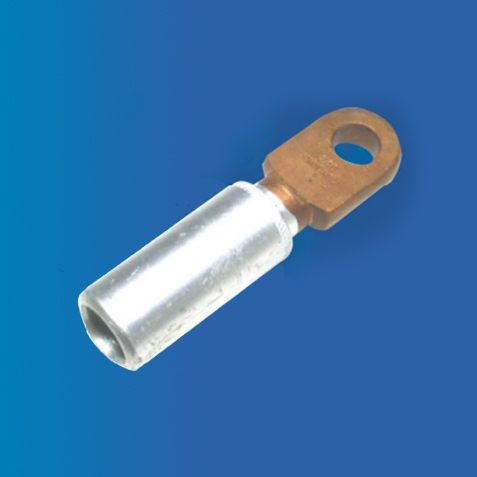

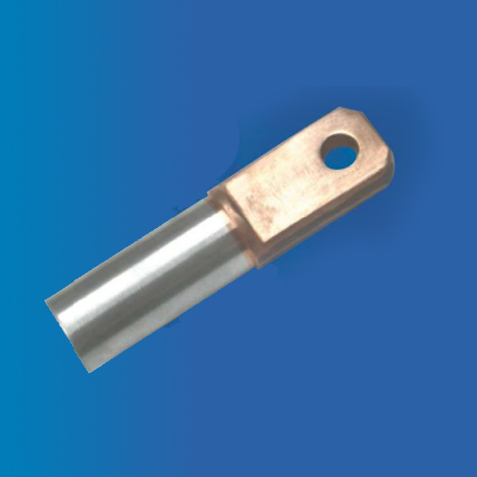

Bi Metallic Lugs with centre Palm




Click For Quote

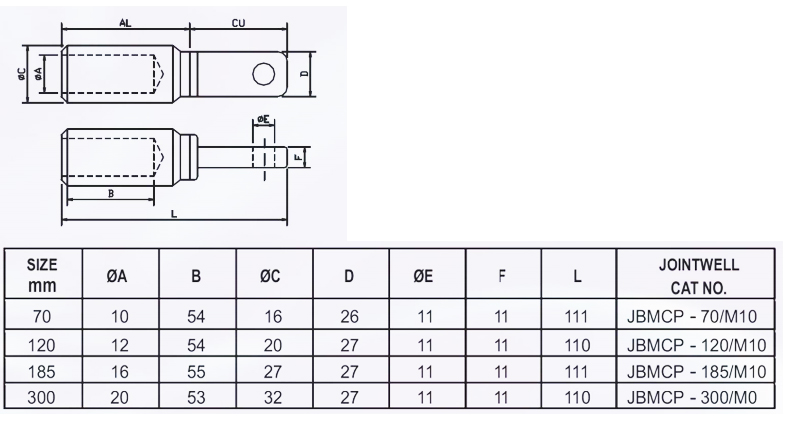

SIZE mm øA B øC D øE F L JOINTWELL CAT NO.
70 10 54 16 26 11 11 111 JBMCP - 70/M10
120 12 54 20 27 11 11 110 JBMCP - 120/M10
185 16 55 27 27 11 11 111 JBMCP - 185/M10
300 20 53 32 27 11 11 110 JBMCP - 300/MO



Click For Quote

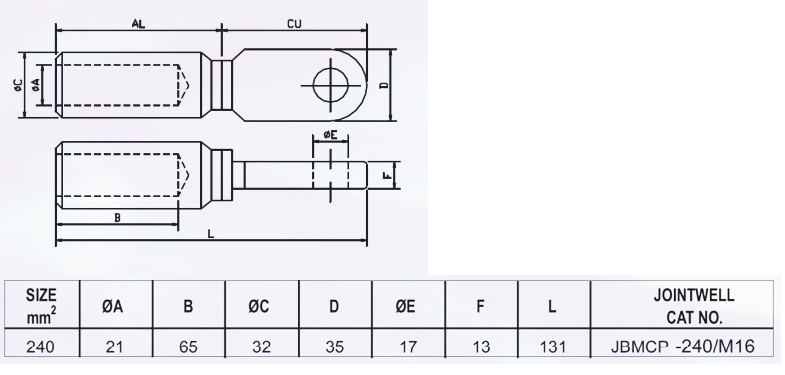

SIZE mm øA B øC D øE F L JOINTWELL CAT NO.
240 21 65 32 35 17 13 131 JBMCP - 240/M16


CONDUCTIVE MATERIAL :
ALUMINIUM BARREL 99.6%
COPPER PALM 99.95%
FINAL METAL STATE FULLY ANNEALED INCLUDING JOINT
JOINING METHOD FRICTION WELDING, WELDING AREA MORE THAN NOMINAL CONDUCTOR AREA.
FINISH NATURAL.

CONDUCTIVITY :
ALUMINIUM 61.8% IACS (MIN)
COPPER 99.7% IACS

ALUMINIUM BARRELARE CHEMICALLY TREATED TO REDUCE CONTACT RESISTANCE AND CORROSION AND ARE FILLED ELECTRICALLY CONDCTIVE CORROSION INHABITANT WITH A JOINTING COMPOUND AND CAPPED.

NOTE :
1) COMBINATOINS OF BI-METALLIC COMPRESSION JOINTS ARE DESIGNED ON THE BASIS OF CURRENT CARRYING CAPACITY OF INDIVIDUAL CABLES.

2) IN CASE ADDITIONAL COMBINATIONS ARE REQUIRED SAME MAY WILL BE PROVIDED AGAINST SPECIFIC REQUEST.

3) SHAPE SIZE AND DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
